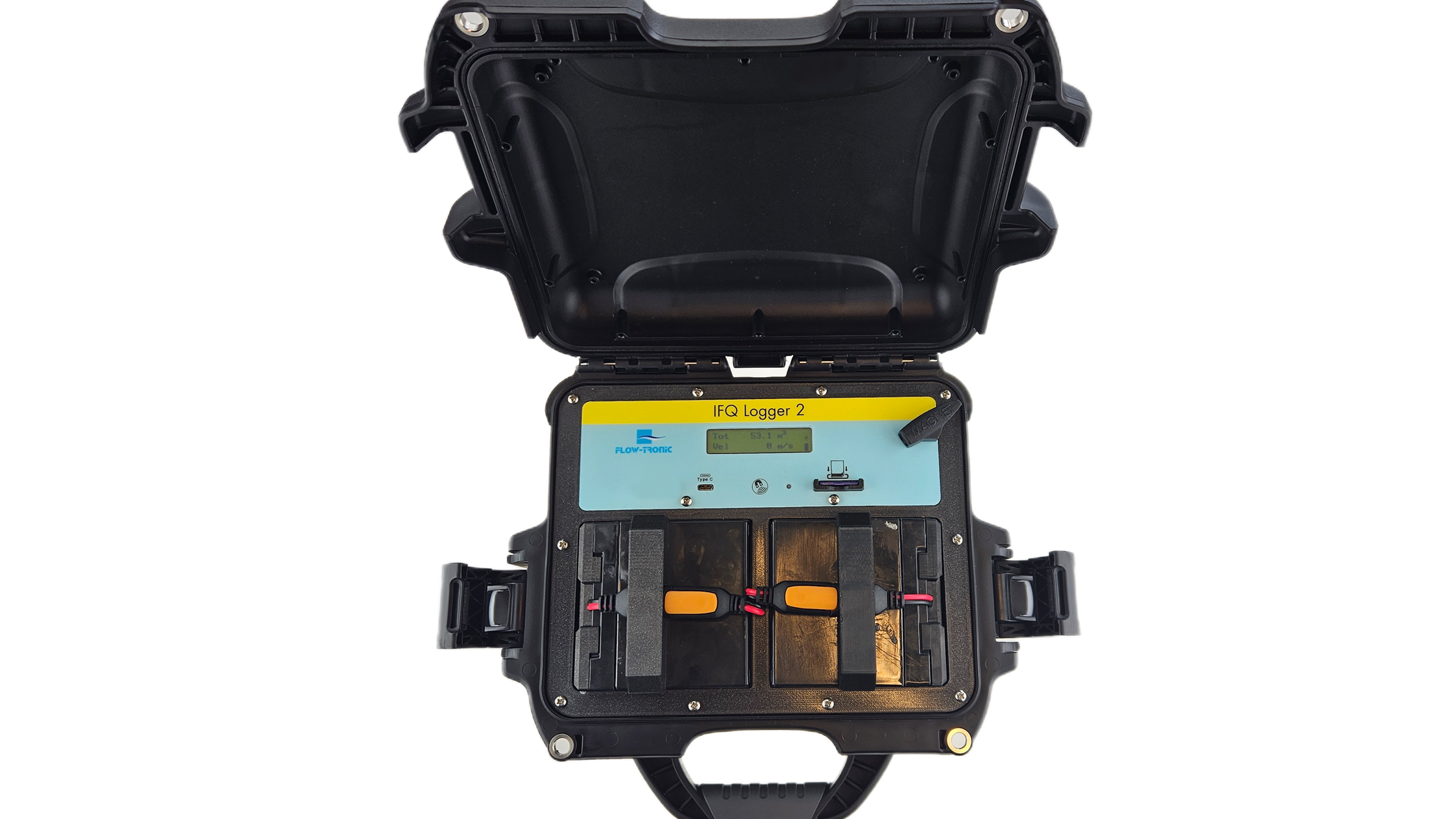

IFQ Logger 2

Portable Logger for RAVEN-EYE 2(+), BELUGA, BELUGA A/V or PHOENIX 2

The IFQ Logger 2 is a portable converter and data Logger designed for use with Flow-Tronic flow sensors. It is equipped with one RS485 digital serial communication port for RAVEN-EYE^®, RAVEN-EYE^® 2(+), BELUGA, BELUGA A/V or PHOENIX 2 sensors, along with a 4–20 mA input for external level measurement.

The IFQ Logger 2 with its robust design and versatile functionality, is ideally suited for inflow and infiltration monitoring, capacity assessment, sewer overflow detection, and sewer studies, delivering reliable data collection for demanding applications in wastewater and environmental monitoring.

Through direct USB-C communication, the IFQ Logger 2 allows quick and straightforward setup and configuration of the flow measurement system. It provides real-time measurements, including velocity distribution and signal analysis, while recorded data can be downloaded conveniently via the USB connection. A built-in local display with navigation using a magnet makes it easy to review the latest recorded values, display alarms, switch between data views, and access key functions such as data recovery in the event of SD card loss or corruption.

The device is built into a rugged IP67 enclosure designed to withstand harsh field conditions. Its connectors combine plastic bodies with stainless steal reinforcement, ensuring long-term durability while remaining corrosion free. Power is supplied by one or two 12 VDC – 12 Ah batteries, which are hot swappable thanks to easily accessible connectors that allow quick replacement without interrupting operation.

1 x RS485 digital sensor interface for velocity sensor (RAVEN-EYE 2(+), BELUGA, BELUGA A/V or PHOENIX 2)
1 x 4-20 mA analog input for level sensor (ULS-02, ULS-06, PLS-02, PLS-06, RLS-15, RLS-C21 or any other loop powered 4-20 mA level sensor with appropriate connector)
Operation with magnet for wake-up, data recovery, alarm, totalizer reset, etc.
Configuration of level offset, units, measuring interval and languages through USB-C and FUZION software
Available language: EN
Wakup and real-time function available
32 Gb memory (SD card)
Power supply : One or two 12 VDC 12 Ah Lead acid batteries
Hot swapable batteries
Deep discharge protection (max 9.6 V)
Enclosure : IP67 Impact-resistant polypropylene resin
Autonomy of 3 months (5 min. interval)

The IFQ Logger 2 is ideally suited for inflow and infiltration monitoring, capacity assessment, sewer overflow detection, and sewer studies, delivering reliable data collection for demanding applications in wastewater and environmental monitoring.
