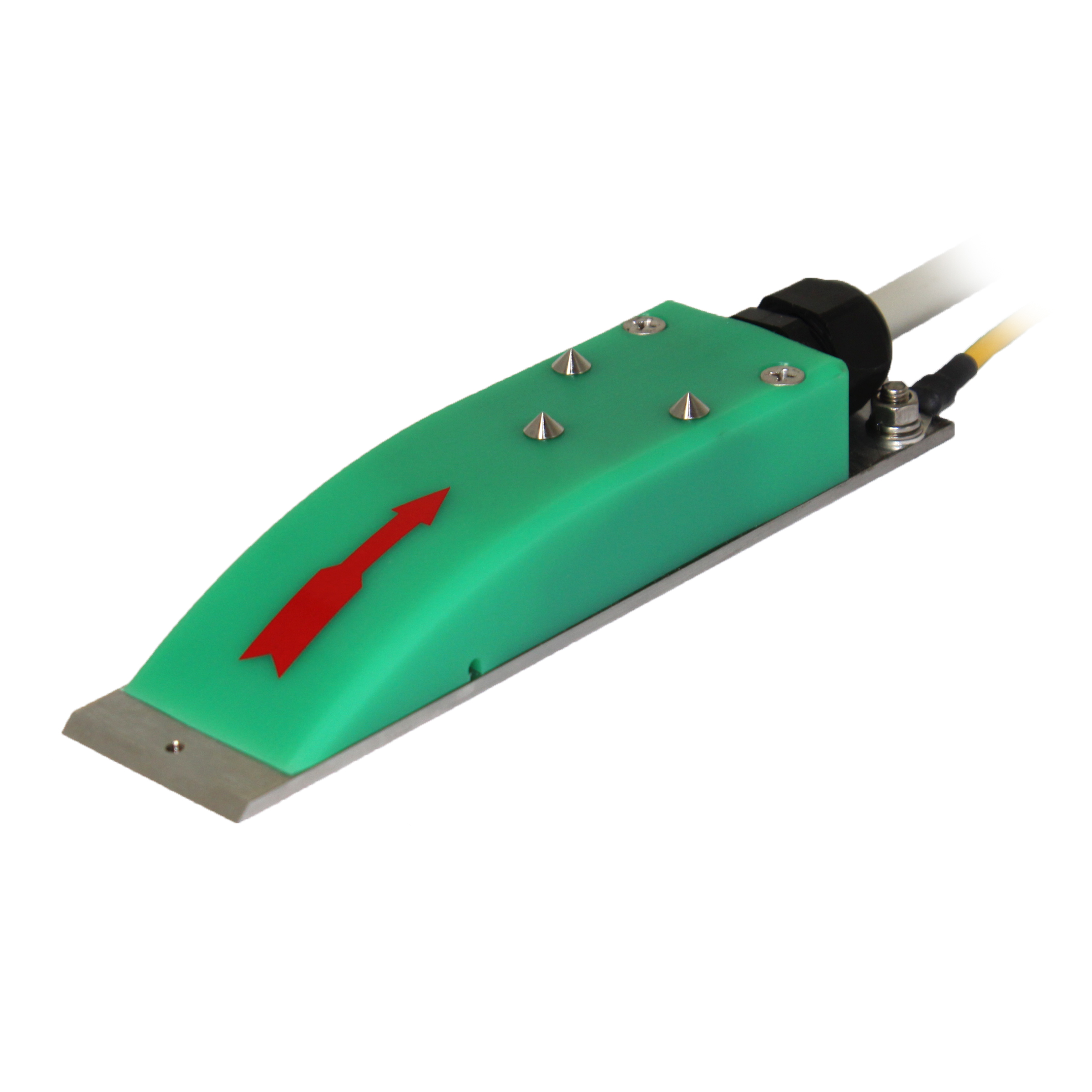

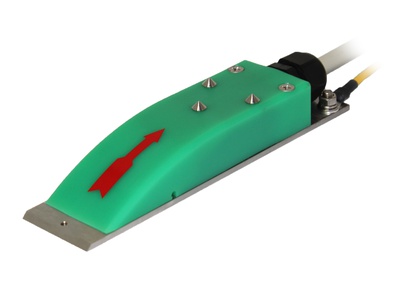

EMV-500

Electromagnetic Velocity Sensor for Open Channel Flowmeter

The EMV-500 is a water/wastewater electromagnetic velocity open channel flowmeter sensor which is available in two sizes:

  • SIZE A is suited for pipes or channels from 150 mm to 500 mm diameter
  • SIZE B is suited for pipes or channels from 500 mm to 2.000 mm diameter.

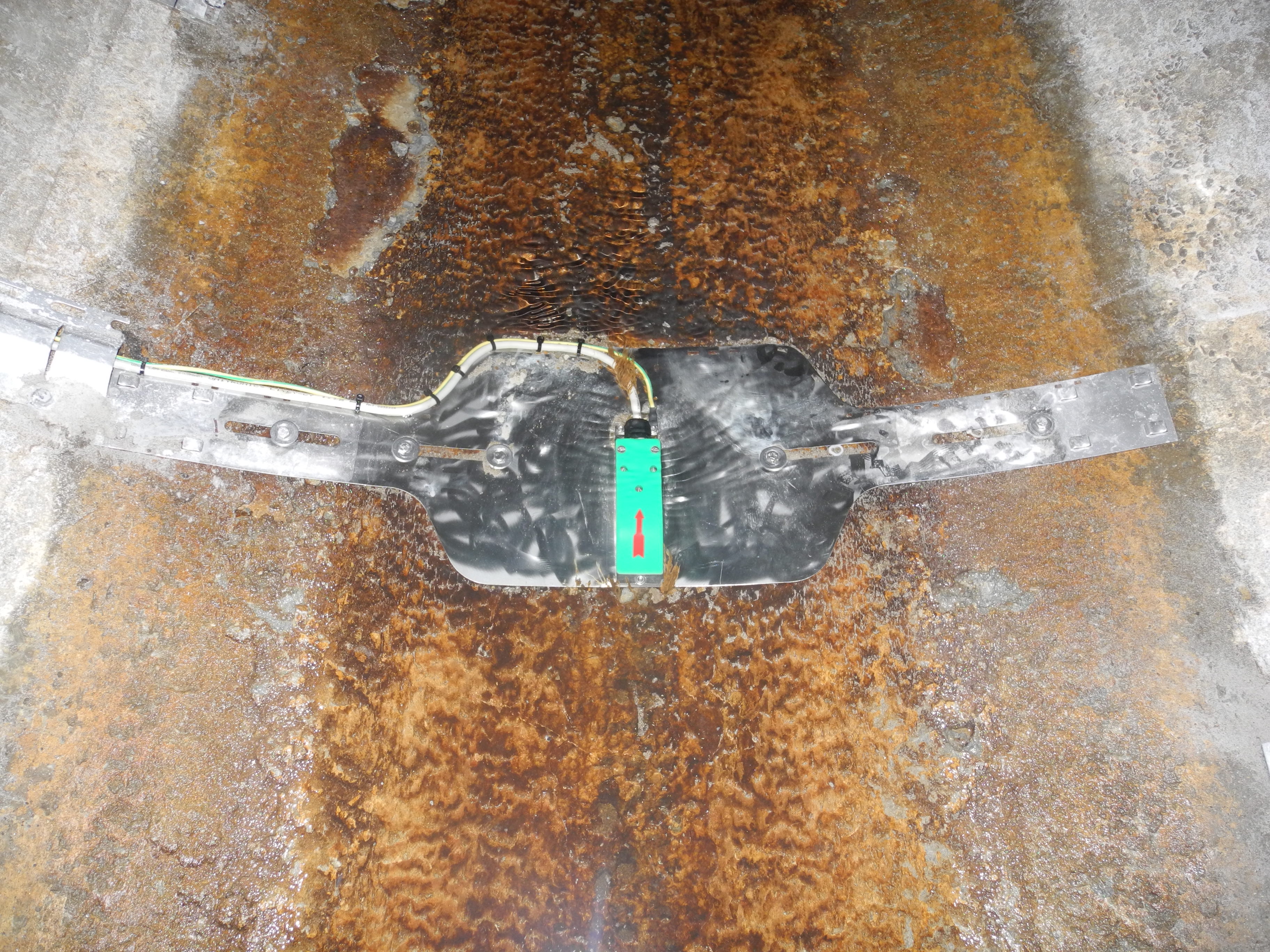

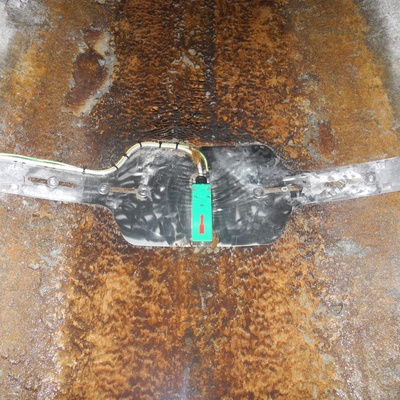

The sensor is encapsulated in an IP68 submersible ultra high molecular polyethylene body to be mounted with a special sensor mounting band in the pipe.

When combined with the appropriate level sensor, the EMV-500 constitutes an efficient electromagnetic area/velocity flowmeter measuring both velocity and level in the same cross-section (or slice of pipe). This is a requirement necessary for accurate flow rate measurement using the continuity equation: Q = v x A

In addition, electromagnetic sensors are totally unaffected by the concentration of debris or dilution of wastewater by rain.

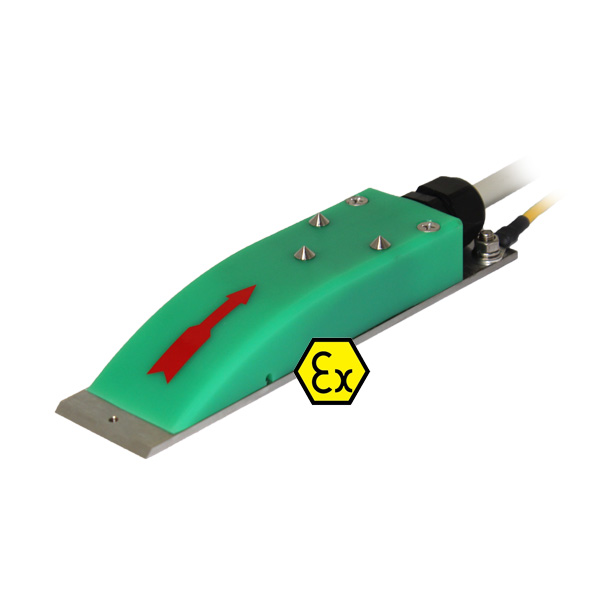

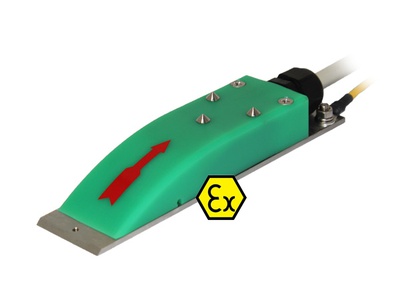

This sensor is also available in ATEX version.

  • Accurate flow measurements
  • Grease tolerant : Grease shedding electrodes allow for reliable data collection even in these difficult environments
  • Field replaceable/interchangeable
  • Ideal for a variety of open channel sizes & shapes: Wastewater sewers (round, rectangular and odd shaped), storm sewers, creeks, rivers and streams
  • Optional : ATEX version
  • Drinking water supplies
  • Water treatment plants
  • Cooling water control and monitoring
  • Chemical and pharmaceutical plants
  • Flow measurements in industry

EMV-500 - Technical Specifications - EN Rev 05-2016

Datasheet / Technical Specifications: EMV-500 electromagnetic velocity sensor for open channel flow meter

Download (444 kB)


EMV-1000 - Technical Specifications - EN Rev 04-2013

Technical Specification: EMV-1000 ATEX certified electromagnetic area/velocity open channel flow meter sensor

Download (717 kB)
