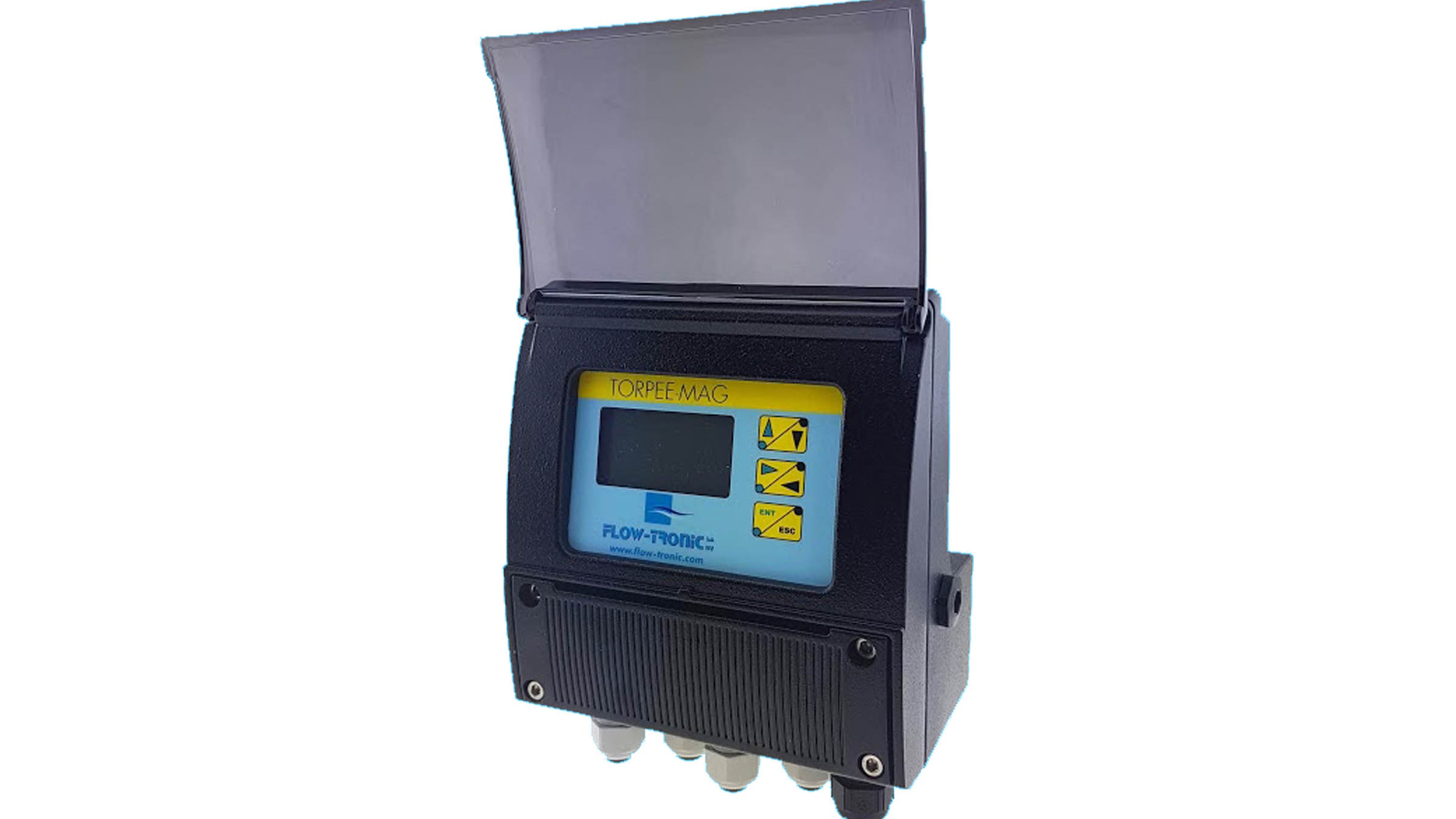

TMC-20

Converter for Full Pipe Flowmeter Sensors

The TMC-20 is a stationary converter for full pipe sensors. It is either AC or DC powered.


When combined with the TORPEE-MAG sensor the TMC-20 with its 4-20 mA and contact closure outputs becomes a powerful full pipe flowmeter and data reporting system. A Modbus RTU or Hart output is available as an option.

The TMC-20 provides users with a reliable solution for full pipe stationary flow monitoring applications.

The standard model includes: an IP67 enclosure; a 3-key numerical keypad; a graphical backlit LCD display, 100-240 VAC or 12-48 VDC power supply, two 0/4-20/22 mA output and two Pulses/Alarm outputs.

  • Two 0/4...20mA outputs
  • Bidirectional
  • Dual range
  • Diagnostic function
  • Empty pipe detection
DRINKING WATER:
  • Distribution
  • Filter Balancing & Backwash
  • Pump Stations
  • UV Dosing
  • Well Water
  • Boosting Stations
INDUSTRIAL:
  • Chilled Water
  • Cooling Water
  • Pulp & paper
  • Chemical
INFLOW AND INFILTRATION (I&I) STUDIES
BILLING / CUSTODY TRANSFER
