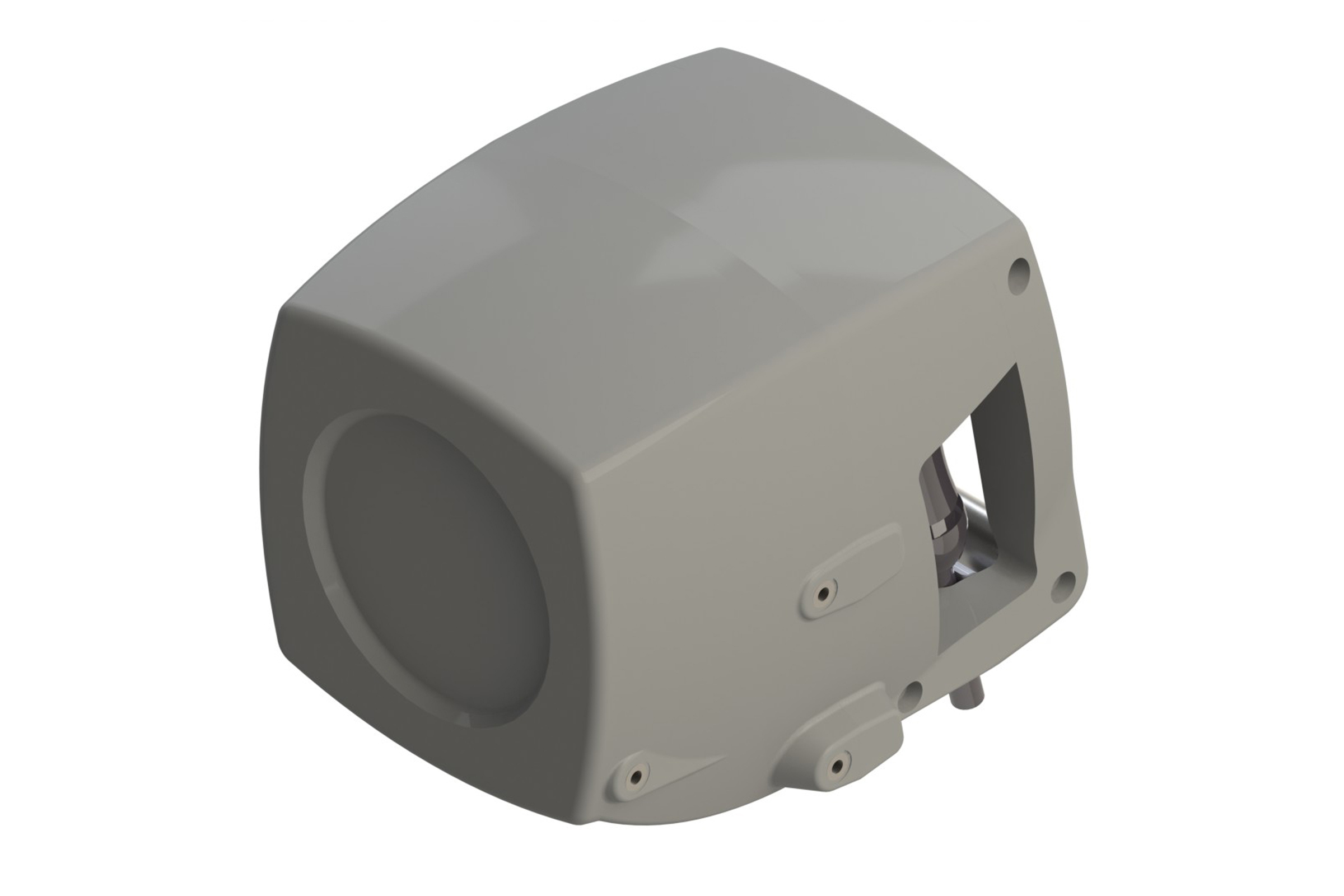

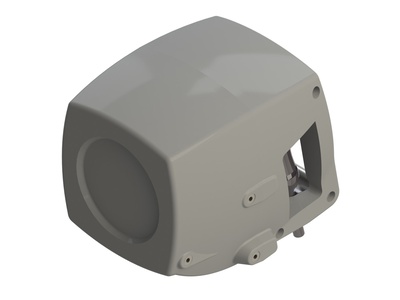

PHOENIX 2400x1600.jpg
PHOENIX 2400x1600.jpg
Drawing - PHOENIX  - 3D - cut -V2.png
Drawing - PHOENIX - 3D - cut -V2.png

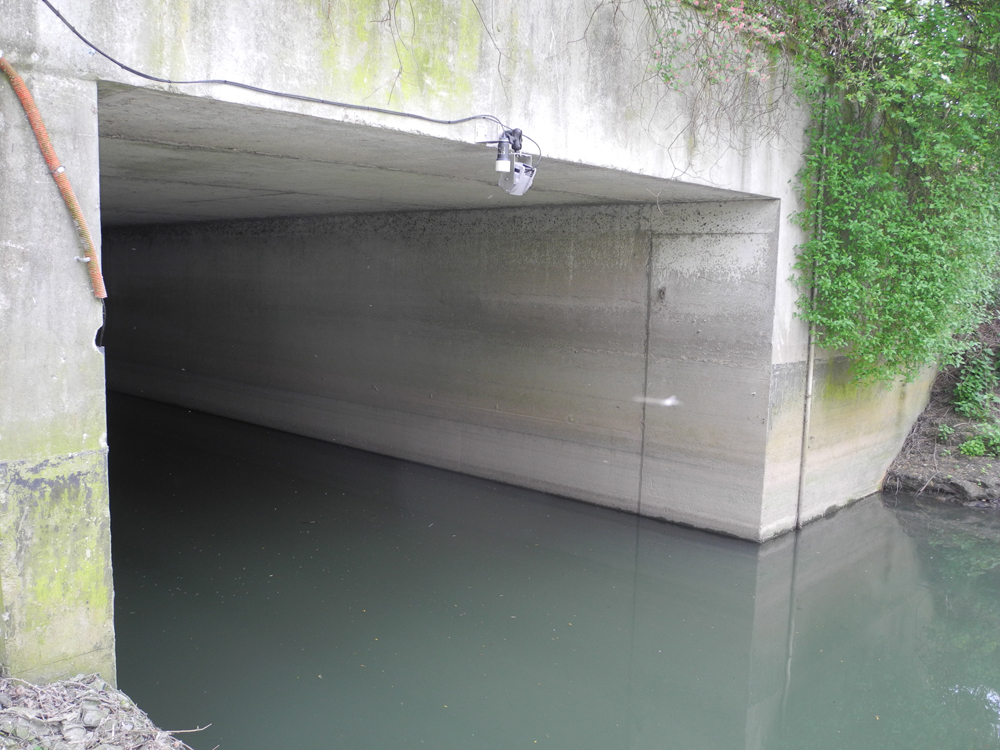

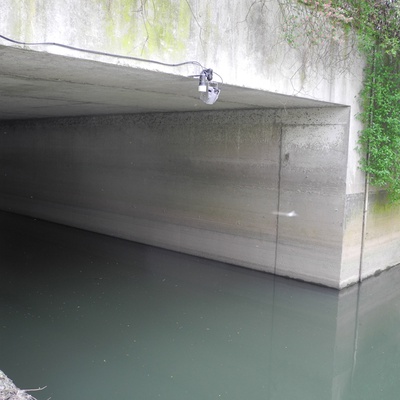

Phoenix Application 01 Belgium.JPG
Phoenix Application 01 Belgium.JPG

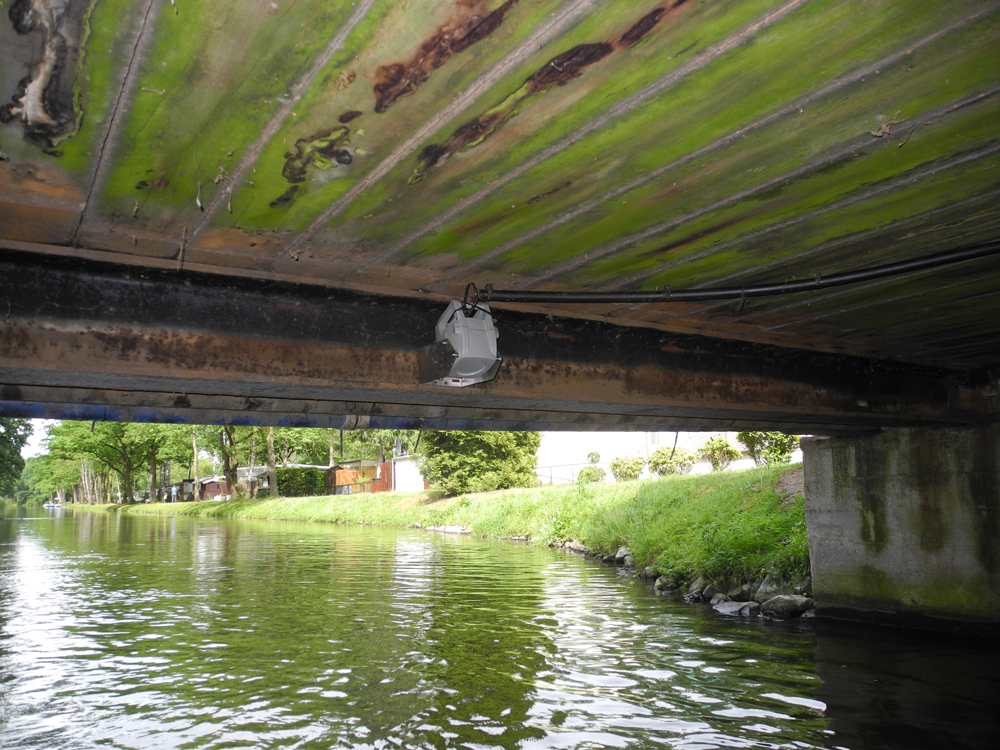

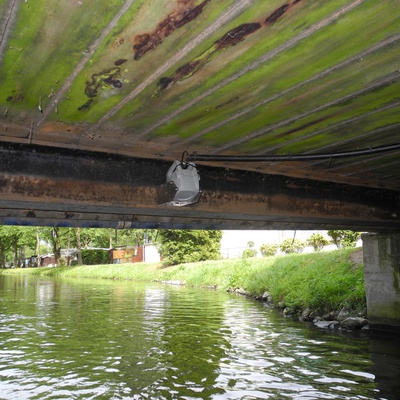

Phoenix Application 03 Netherlands.JPG
Phoenix Application 03 Netherlands.JPG

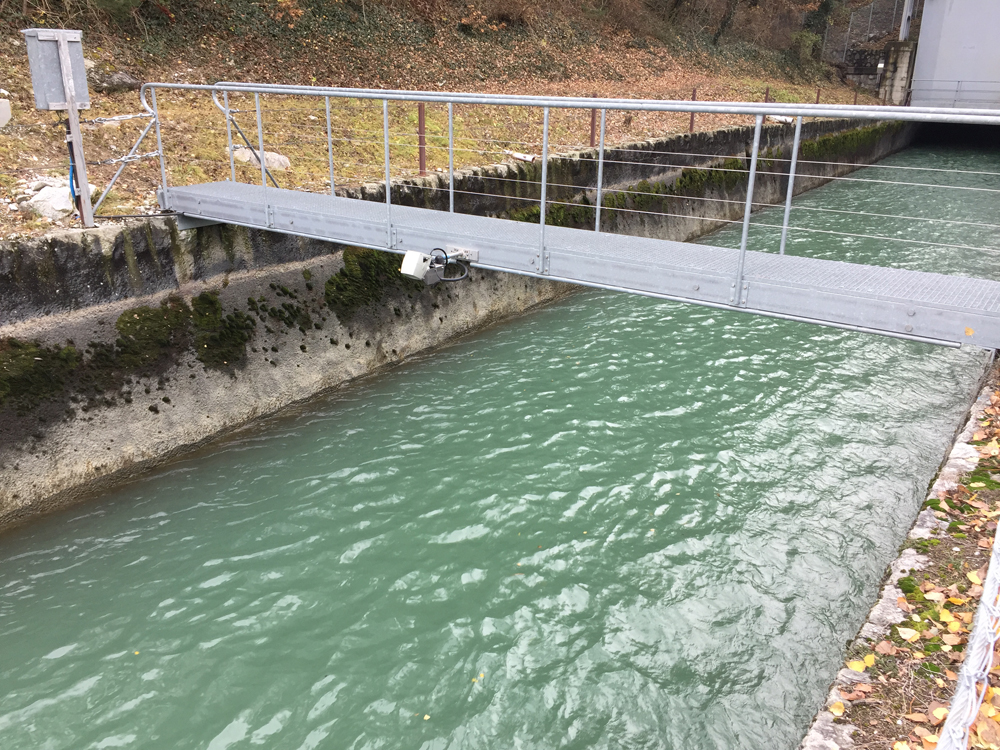

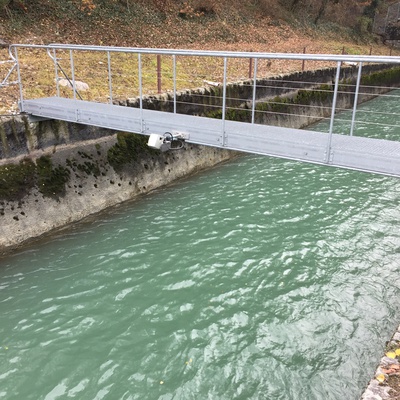

Phoenix Application 11 Switzerland.JPG
Phoenix Application 11 Switzerland.JPG

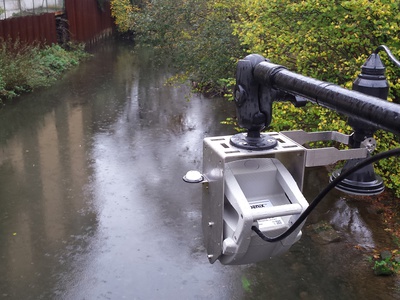

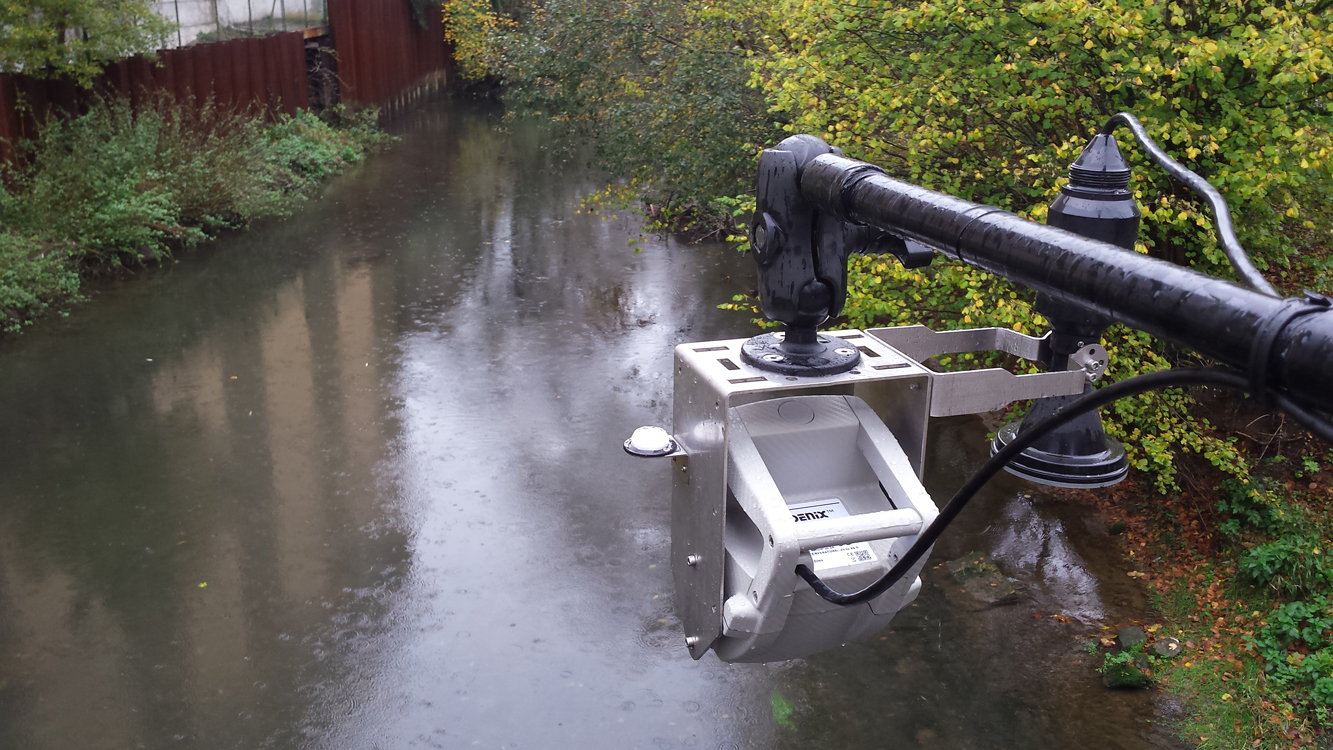

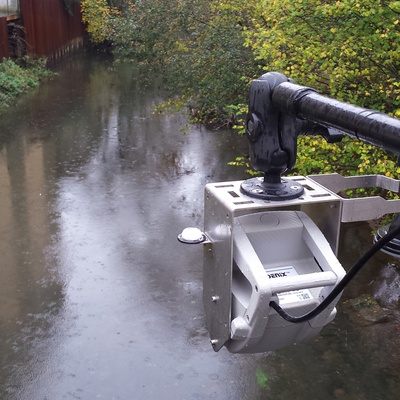

Phoenix Application 09 France.jpg
Phoenix Application 09 France.jpg

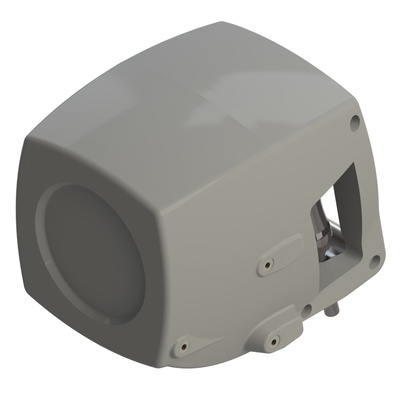

Phoenix

Non-Contact Radar Flowmeter for Rivers

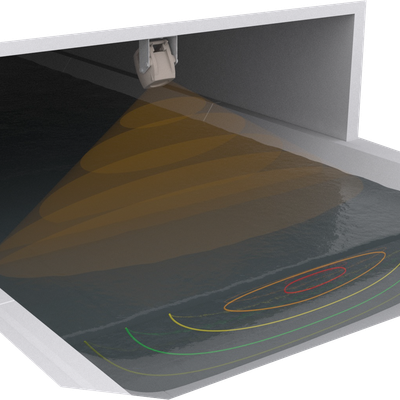

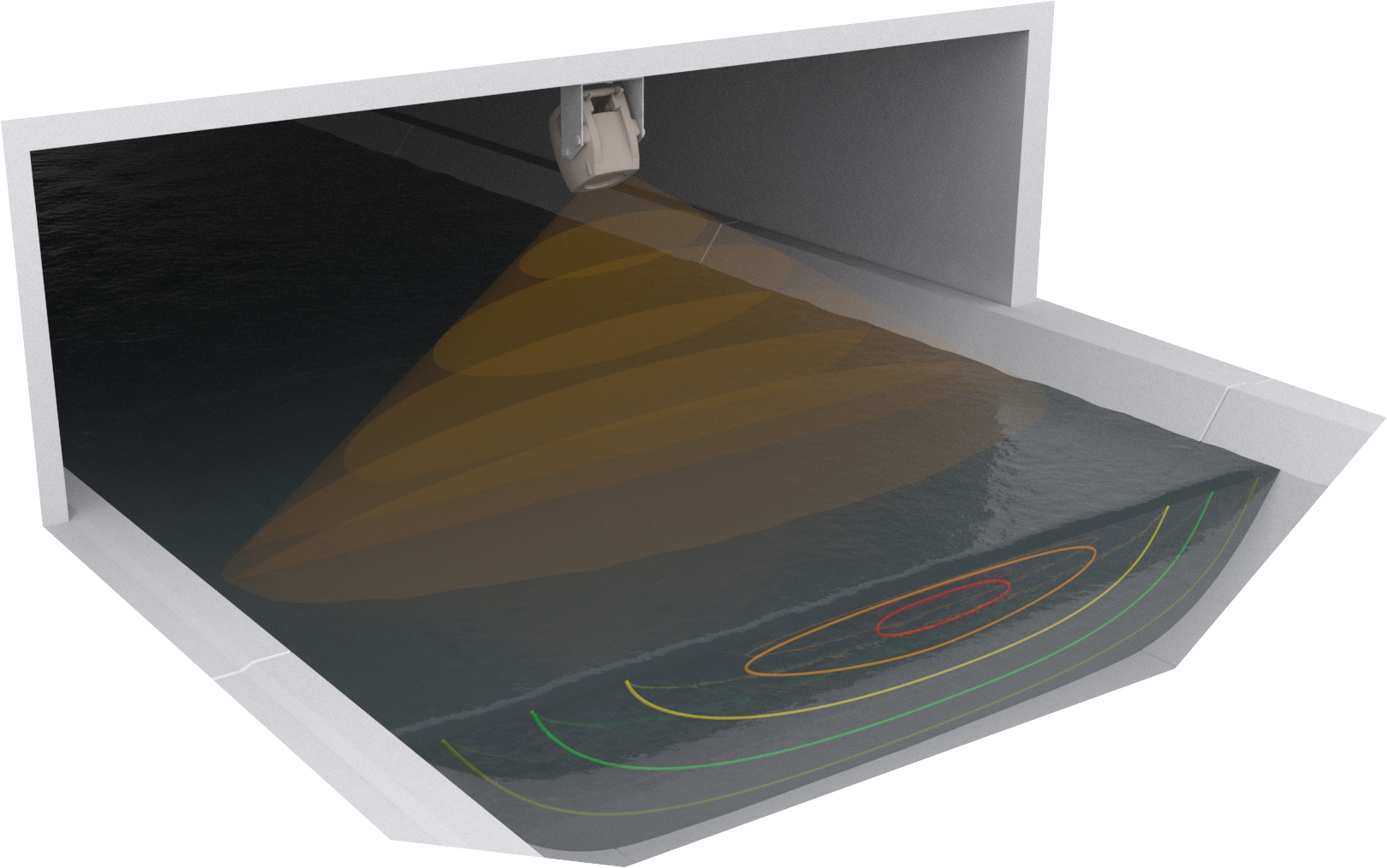

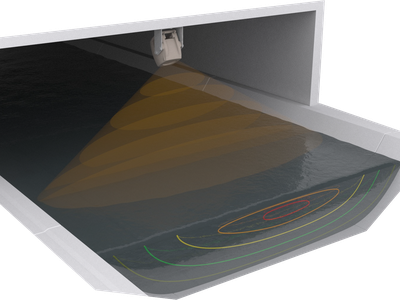

The PHOENIX is the new non-contact RADAR area/velocity flowmeter specially designed for rivers or large irrigation channels. Elaborated opening angle of 32° allows the radar to see a full spectrum of velocities over the river or channel width.

The PHOENIX provides highly accurate flow measurements under a wide range of flow and site conditions.

The PHOENIX is featured with the well-known auto-diagnostic system introduced by Flow-Tronic on the RAVEN-EYE®. Internal sensors monitor and report the condition or “health” of the measuring system.

Flow Measurement Method

  • Conversion from surface velocity measurement to average velocity based on profiler measurement (For rivers: ADCP or current meter).
  • Possibility to base conversion on models.
  • Conversion of water level and profile size to fluid area.
  • Multiplication of fluid area by average velocity to obtain the flow rate.

The PHOENIX is a universal non-contact level/velocity flow sensor that can be connected to the RTQ flow logger series or the IFQ MONITOR. Optionally it can also be connected to any device using the Modbus ASCII communication protocol

  • Accurate flow measurement
  • Cost-effective
  • Non-contact: the sensor is positioned above the water surface
  • Easy installation
  • Robust IP68 (PU) enclosure
  • Auto-diagnostic system
  • No maintenance
  • Easy integration with SCADA, PLC or telemetry systems
  • River, canals, streams monitoring
  • Water management
  • Flood prevention
  • Irrigation channels flow monitoring
  • Hydropower plants
  • Rain basin modeling
  • Large wastewater channels
  • Drains
